WiFi NTP Digital Wall Clocks

Time is arguably the most critical aspect of efficiency in any company. While TimeMachines does not (yet) have a magic wand to add hours to your already busy day, our WiFi NTP digital clock displays will synchronize your time and keep your entire team on the same schedule.

NTP WiFi Red Clock Digit Size Comparison 2.5-inch 6 digit and 4-inch 4 digit
NTP WiFi Red Clock Digit Size Comparison 2.5-inch 6 digit and 4-inch 6 digit

The TimeMachines WiFi digital wall clock displays use Network Time Protocol (NTP) to display your network's time. Every WiFi network clock display is assigned a unique IP address within your network, and can be configured to either an internal network time source, or an external, internet-based time server like NIST Internet Time Service. Whether your time is sourced internally or through the internet, all of these networked clocks will display synchronized time wherever they are located within your facility.





WiFi NTP Clock SetupWifi NTP Clock Back - Power, WiFi, Ethernet Connections and Reset

The WiFi clock displays are powered by a 12VDC power supply and also include a WiFi antenna.  For initial set-up of these WiFi NTP wall clocks, an Ethernet cable must be connected to the clock.  Within a few moments of being connected to the network, it will synchronize and display time.  Now you are ready to configure your clock to the specifics of your WiFi network.

Once your clock is displaying time, simply push the button on the back of your clock two times to get the DHCP served IP address for your clock – it will scroll across the display.

Then using a web browser (Chrome and Firefox are recommended), type in the IP address that was displayed as the URL. For example, http://10.10.0.100.  This will take you to the web-based graphic user interface for configuring your clock.

WiFi NTP Clock Login for Network Configuration

Once you are logged in, within the configuration page, you can assign your preferred NTP time source (either within your network or outside), a secondary time source, any time zone customization that may be required, and your display format (12 hour or 24 hour).  These are the basic configuration settings that set your time source and enable your time synchronization within the network.  All displays on the network should be set to the same time source(s) on their configuration page to ensure synchronization.

To set the clock up on your WiFi network, you will also need to input the SSID, the security type (Open, WPA1, or WPA2), and the AP password for your WiFi network.  Once these WiFi network settings are in AND saved, you can disconnect the Ethernet cable, cycle power, and use the clock exclusively on your WiFi network.

WiFi NTP Clock Setup Network and Time Synchronization

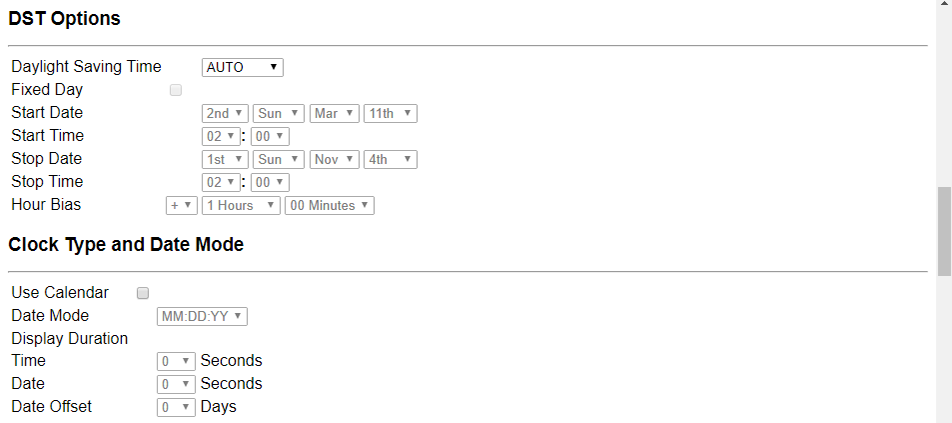

There are additional configuration sections to customize daylight savings settings, as well as date and time display options.

WiFi NTP Clock DST and Display Options

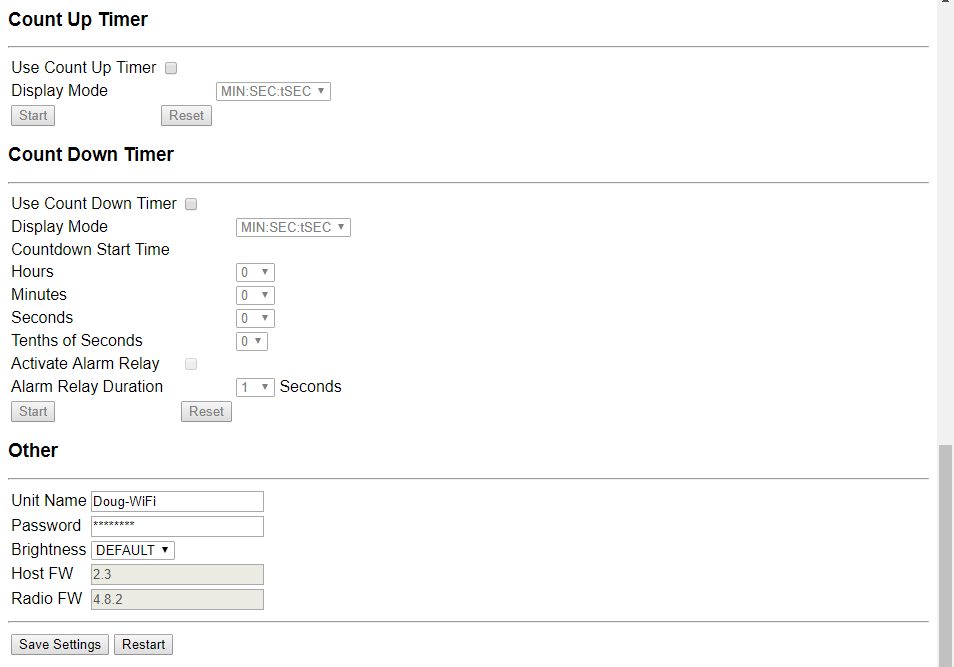

Within the individual configuration page, an individual display can be configured to be a count-up or count-down timer.  The alarm capabilities of this device that can be utilized if a relay connector is added to connect the clock to a buzzer or bell.  You can also change the device name (Conference Room #1, Classroom #104, Front Office, etc.), set the access password, and make brightness adjustments from this configuration page for an individual device.

WiFi NTP Count Up Count Down Timer and Other Settings

Once that is all customized to your needs, you are all set.  It's really just that simple!



More than just a clock – WiFi Network Clock Timers

If you have lots of TimeMachines NTP wall clocks on your network, you can use any of our free applications to monitor, adjust, or expand the functionality of your WiFi and PoE Network Clocks collectively from one spot rather than on each individual device's configuration page.  You can customize some of your displays to become network clock timers when needed – individually or synchronized in various groups across the network.  You can set one display to display only the date, while others are clocks or timers.  These applications give you a broader control over the specifics of your entire network of TimeMachines devices.  Take a look at our TM-Manager software for Windows, or the TM-Timer Smartphone App which is available for both Android and iOS.
