TM2503A 10MHz and 1PPS Distribution Amplifier

$279.99

In stock

SKU: 760-2503-000 Category:

Description

The TM2503A is a 3 channel distribution amplifier that can distribute 1PPS and 10MHz signals from other TimeMachines time server products.  It is well matched to the TM2500C when the need to distribute the 10MHz signal to distant equipment is needed.  It resides in the same form factor as the TM2500C and can be mounted in the same rack mount panels making for a clean installation.

The TM2503 contains filtering to turn the 3.3V TTL square wave 10MHz signal into a low distortion sine wave.  50Ohm inputs and outputs are standard.  Clean sine waves travel much more reliably on coaxial cable across longer distances.  The 1PPS signal is not filtered, but having 3 separate drivers allows a wider distribution of the 1PPS signal if required.  The TM2503A has a selection switch that switches the signal path between the 1PPS and 10MHz modes.  It is powered from a single 12V supply and provides isolated outputs.

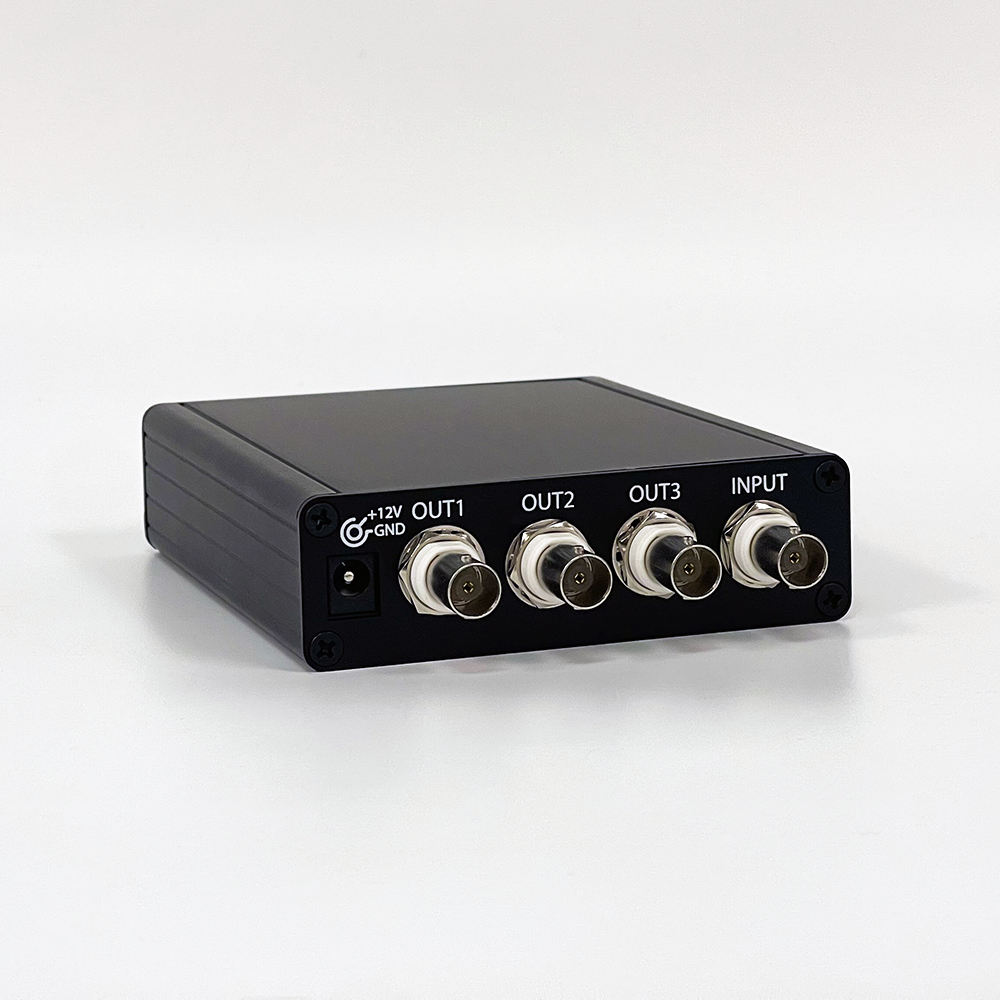

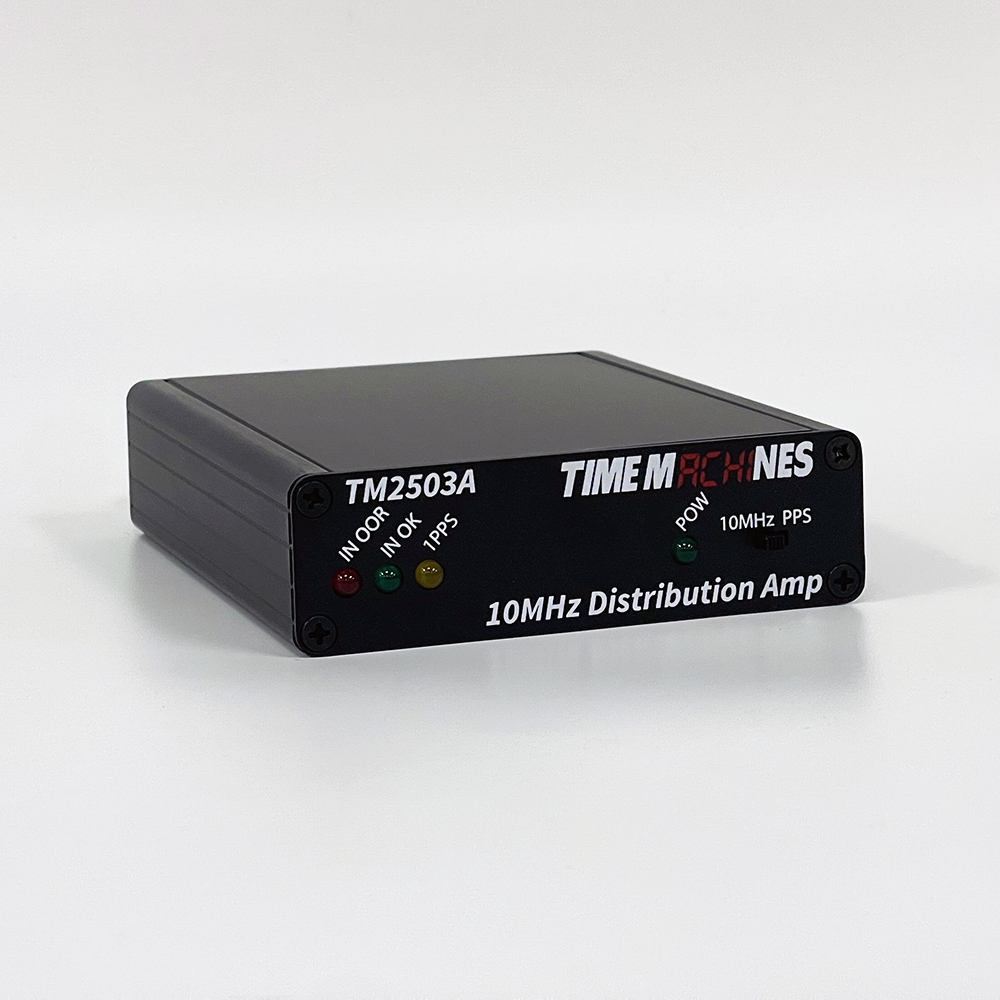

Front panel indications for 10MHz Out of Range, 10MHz Good, 1PPS, and Power provide functional information with a quick glance.  Input and output connections are made through standard BNC connectors located on the back of the device.

Each TM2503A comes with a 12V international power supply

TM2503A Manual

Additional information

Weight 2 lbs
Dimensions 8 × 7 × 4 in
Country of Origin

US

ECCN

EAR99

HS Code

8517.62.0090
