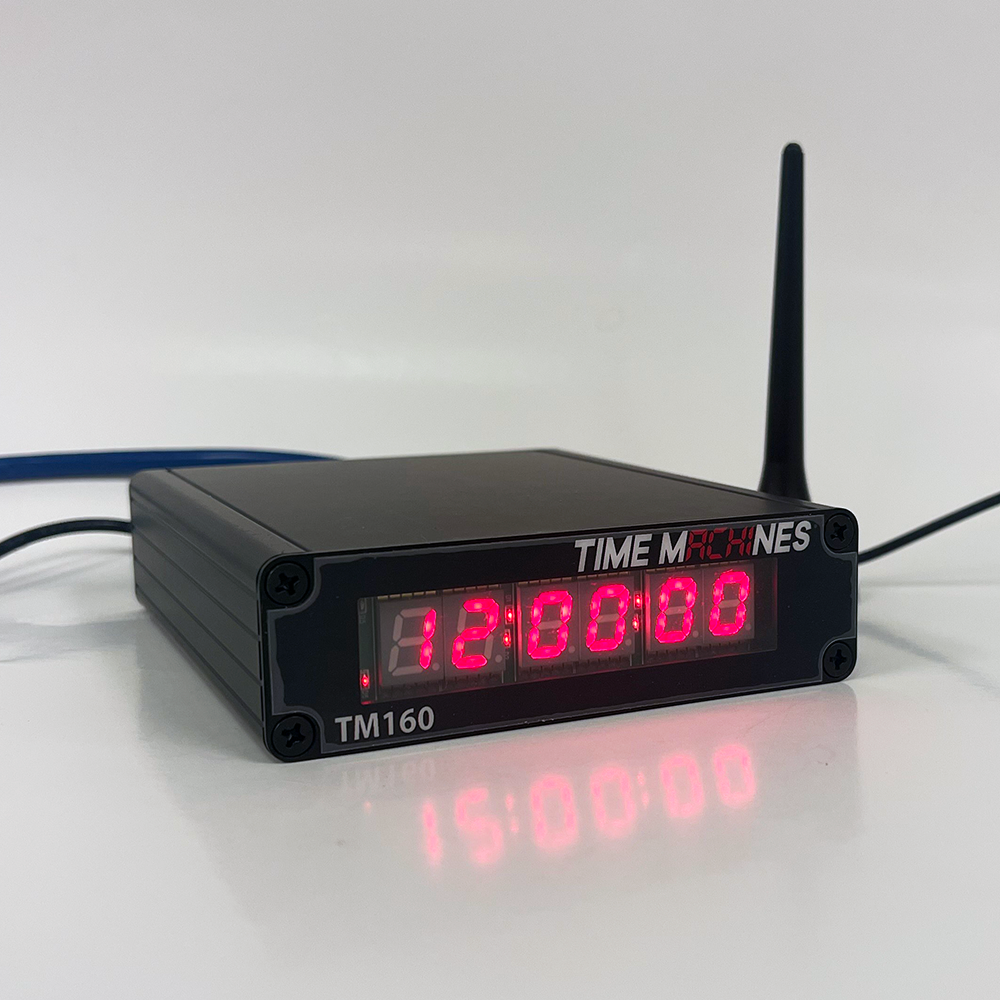

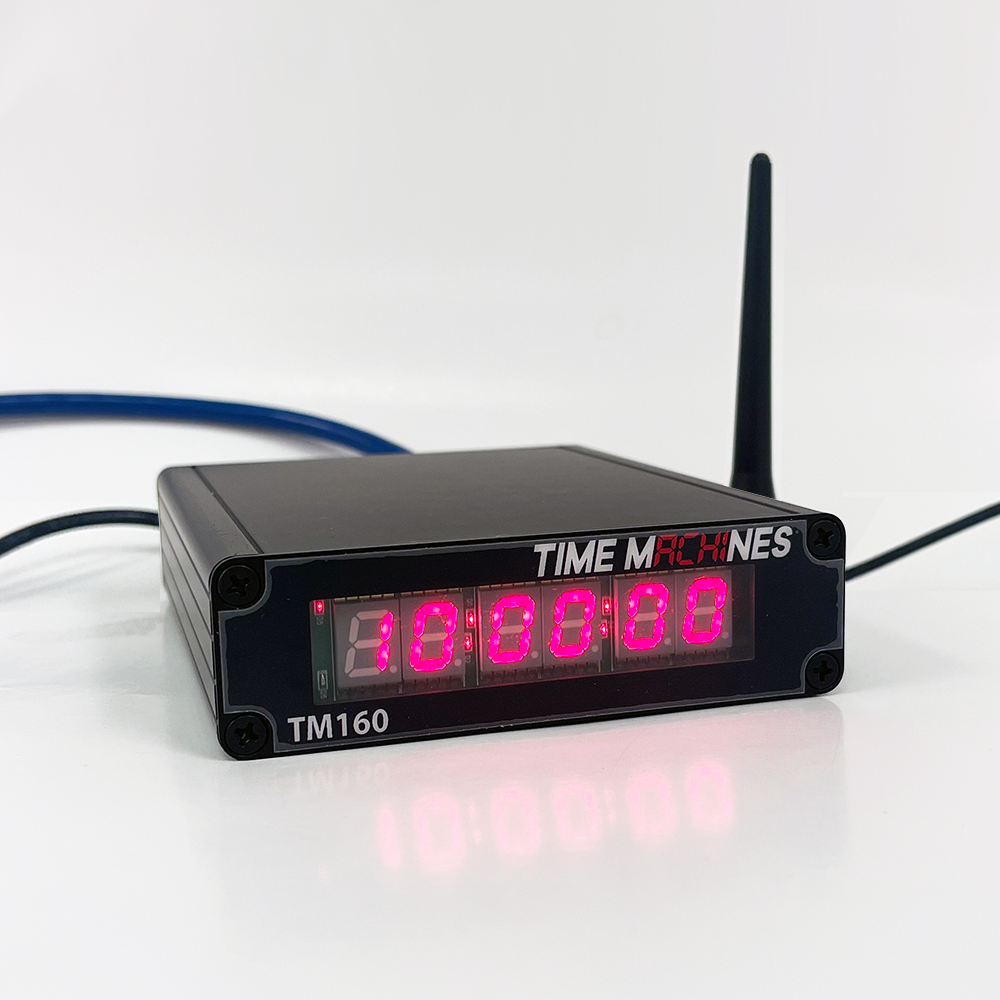

Rack Mountable 0.5 inch WiFi NTP Clock


The TM160W WiFi clock is a low profile clock based on the same hardware and software as our other NTP digital clock displays. The bright red digits are 0.5 inches tall. It is installed in the same case as our TM1000A and TM2000A time servers, making it an ideal solution for a rack mount companion to those products. It can be mounted using the same 1U rack mount face plates that the TM1000A/2000A use. Mount a single clock using the 760-022-000 plate, or mount a time server and a clock in a 1U space using the 760-023-000 dual rack mount plate. Its small size also makes it ideal as an interface to a campus wide bell system. It has the same relay output that our other displays have and all of the same versatility for alarm event setting through its web interface or using TM-Manager. The WiFi clock supports both wired Ethernet and WiFi modes with an external 12V power supply. The rack mount plate and relay connector is sold separately.

In stock (can be backordered)

5% Discount when ordering 5-9 of this item.
10% Discount when ordering 10 or more of this item.


Frequency: 2.4GHz Band Only
Product Mechanical Dimensions: 5″ x 4.2″ x 1.3″
Security Support: WEP, WPA, or WPA2 with pre-shared keys. WPA2 Enterprise is NOT supported.
Due to the variation in WiFi systems, TimeMachines recommends compatibility testing before bulk purchase.

Additional information

Weight 2 lbs
Dimensions 8 × 7 × 4 in
